Grid Panel 140

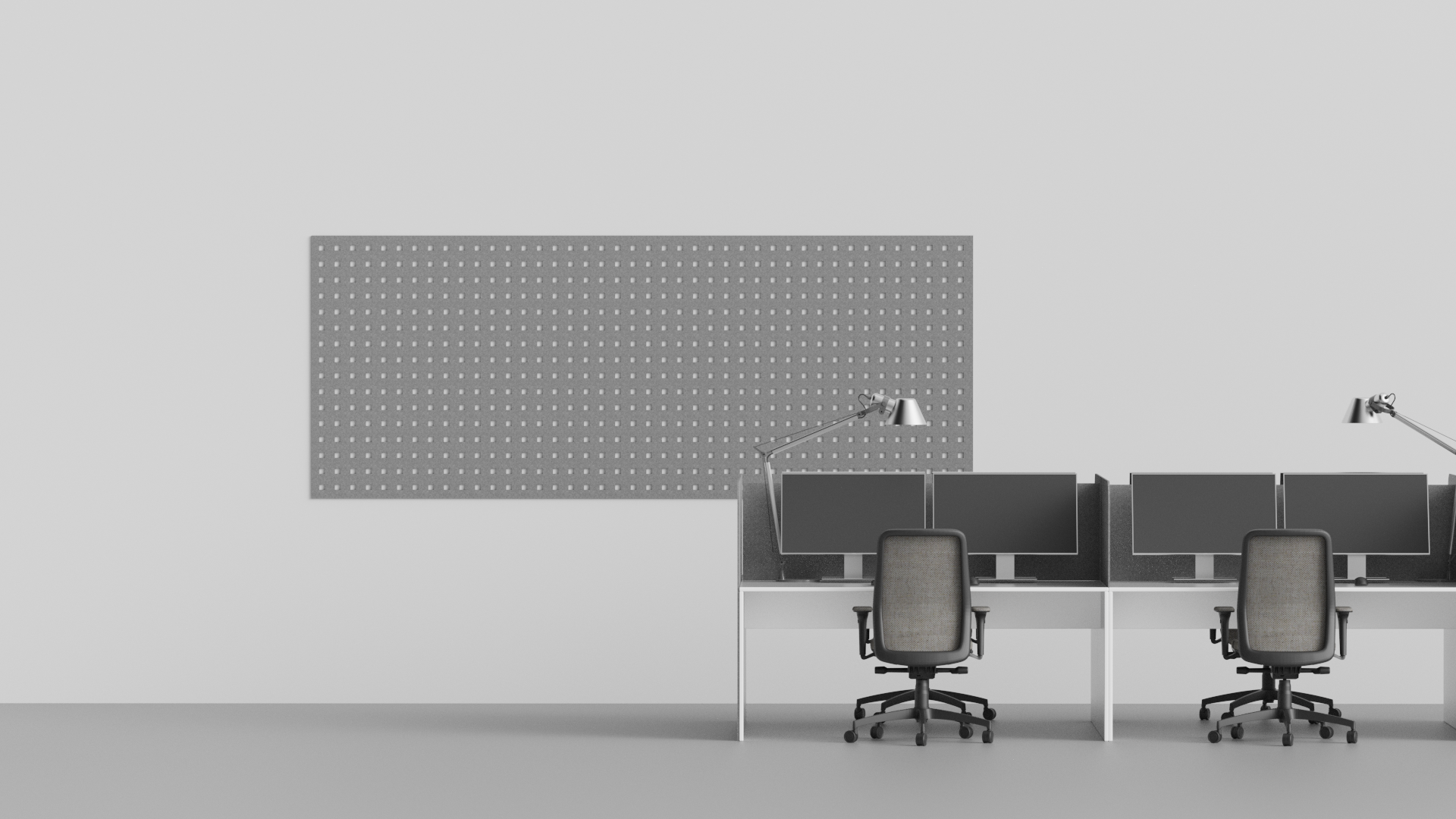

Wall mounted acoustic panels. Choose our optional wall fixation kit according to wall materials. Different holes sizes available on demand. Armand.Solutions acoustic systems are made entirely from locally sourced recycled PET fleece. Designed by architect Alain Berteau. Produced in Germany.

Reference sku #
Product type
Environment
Dimensions Flat
Dimensions Deployed
Material
Weight
Fire Resistance Certification
Sound absorption Classe

GDP.140. - -
Wallmounted Panel
Indoor
1400x1200x9mm
1400x1200x9mm
Recycled Pet Fleece
3,5kg
DIN EN 13501-1
 B-s I, d0
DIN ISO 11654

Classe D_20cm gap both sides
Classe E_No gap, one side

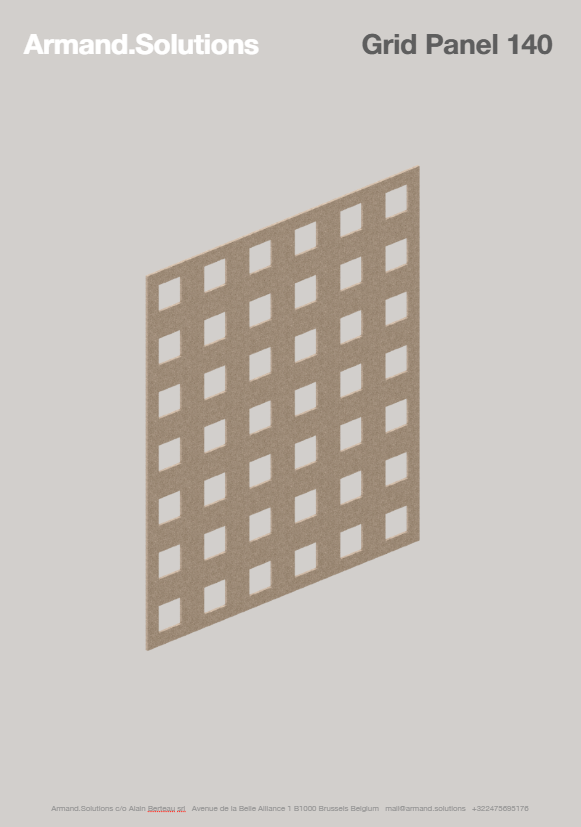

ProductSheet.pdf

Acoustic_Certif.pdf

LiteOneColors.pdf

ClassicColors.pdf

Fire_Certif.pdf
